Using Dual Franka#

https://raw.githubusercontent.com/RLinf/misc/main/pic/franka_arm_small.jpg — Franka arm hardware used as the basis for the dual-Franka GELLO collection and π₀.₅ deployment workflow.#

Run the supported dual-Franka workflow: collect joint-space demonstrations with GELLO, convert them to tcp_rot6d data, fine-tune OpenPI π₀.₅, and deploy the checkpoint back to the robot nodes.

Overview#

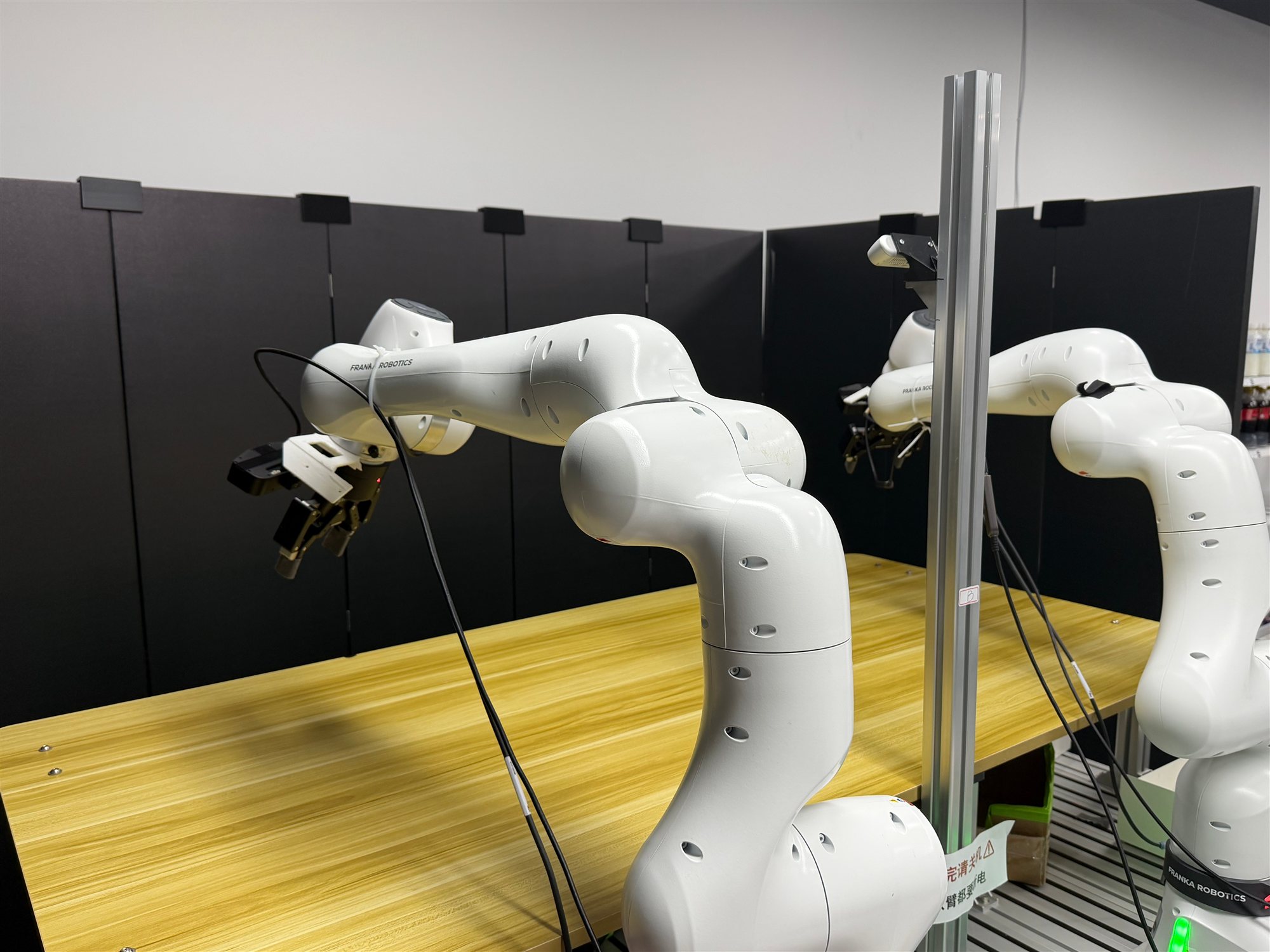

Build a dual-arm dataset, train π₀.₅, and deploy on a two-node Franka rig.

Models

OpenPI π₀.₅

Algorithms

SFT · eval-only deployment

Tasks

Dual-arm manipulation

Hardware

2× Franka · 2 robot nodes · GELLO

You’ll do: install franky deps → collect GELLO demos → convert rot6d data → run SFT → deploy eval config.

Prerequisites: Real-World RL with Franka · Using GELLO with Franka · two Franka arms · OpenPI assets.

Tasks#

Task	Config / entry point	Description
Collection	`realworld_collect_data_gello_joint_dual_franka`	Collect dual-arm joint trajectories.
SFT	`realworld_sft_openpi_dual_franka_tcp_rot6d`	Fine-tune π₀.₅ on tcp_rot6d actions.
Deployment	`realworld_eval_dual_franka`	Run eval-only deployment on the robot nodes.

Observation and Action#

Field	Description
Observation	Wrist/global camera views plus dual-arm robot state.
Action	Dual-arm tcp_rot6d: `[L_xyz, L_rot6d, L_grip, R_xyz, R_rot6d, R_grip]`.
Reward	Evaluation success signal or operator-gated deployment outcome.
Prompt	Task text in the OpenPI data/config metadata.

Installation#

Robot Nodes#

Run the robot-node installation on both node 0 and node 1. Choose LIBFRANKA_VERSION from the official Franka compatibility matrix; avoid libfranka 0.18.0.

git clone https://github.com/RLinf/RLinf.git
cd RLinf

export LIBFRANKA_VERSION=0.15.0       # replace with your compatible version
bash requirements/install.sh embodied --env franka-franky --use-mirror
source .venv/bin/activate

Install GELLO dependencies on node 0 by following Using GELLO with Franka. The two GELLO leaders must stay local to node 0; do not route their 1 kHz stream over the LAN.

Real-time prerequisites#

franka-franky uses franky/libfranka to communicate with each Franka at 1 kHz. The RLinf installer installs runtime dependencies only; configure the PREEMPT_RT kernel and real-time permissions according to the official Franka real-time kernel guide.

Run this example on each workstation that directly communicates with a Franka before starting Ray. Replace <FRANKA_NIC> with the dedicated robot NIC and <ROBOT_IP> with LEFT_ROBOT_IP on node 0 or RIGHT_ROBOT_IP on node 1.

# Per-boot tuning.
sudo bash -c 'for g in /sys/devices/system/cpu/cpu*/cpufreq/scaling_governor; do
    echo performance > "$g"
done'
sudo sysctl -w kernel.sched_rt_runtime_us=-1
sudo ethtool -C <FRANKA_NIC> rx-usecs 0 tx-usecs 0 2>/dev/null || true

# Optional: keep the RT scheduling budget setting after reboot.
echo 'kernel.sched_rt_runtime_us = -1' | sudo tee /etc/sysctl.d/99-franka-rt.conf

# Check realtime permissions and the robot link before running RLinf.
uname -a | grep -o PREEMPT_RT
ulimit -r
ulimit -l
sudo cyclictest -p 80 -t 4 -i 1000 -l 300000 -m
ping -c 1000 -i 0.001 <ROBOT_IP> | tail -3

ulimit -r should report 99 or unlimited; ulimit -l should report unlimited. Re-apply the per-boot tuning after every workstation reboot.

Training Node#

Install OpenPI dependencies on the remote GPU training cluster that will perform SFT:

git clone https://github.com/RLinf/RLinf.git
cd RLinf
bash requirements/install.sh embodied --model openpi --env maniskill_libero --use-mirror
source .venv/bin/activate

Configuration#

Use the repository-provided configs and replace the required parameters:

Config	Purpose
`examples/embodiment/config/realworld_collect_data_gello_joint_dual_franka.yaml`	GELLO joint-space collection
`examples/sft/config/realworld_sft_openpi_dual_franka_tcp_rot6d.yaml`	π₀.₅ SFT on converted tcp_rot6d data
`examples/embodiment/config/realworld_eval_dual_franka.yaml`	Real-world policy deployment
`examples/embodiment/config/env/realworld_dual_franka_joint.yaml`	Shared joint-space hardware defaults
`examples/embodiment/config/env/realworld_dual_franka_tcp_rot6d.yaml`	Shared tcp_rot6d hardware defaults

Replace the placeholders marked with # Replace::

LEFT_ROBOT_IP / RIGHT_ROBOT_IP: FCI IP visible from each controller node.
BASE_CAMERA_SERIAL, LEFT_CAMERA_SERIAL, RIGHT_CAMERA_SERIAL: camera serials or stable /dev/v4l/by-id paths.
LEFT_GRIPPER_CONNECTION / RIGHT_GRIPPER_CONNECTION: stable /dev/serial/by-id paths for the Robotiq adapters.
LEFT_GELLO_PORT / RIGHT_GELLO_PORT: stable /dev/serial/by-id paths for the two GELLO leaders.
TASK_DESCRIPTION: the natural-language task prompt used for collection, SFT, and deployment.
SFT_DATASET_REPO_ID: the converted dataset ID, usually <repo_id>/tcp_rot6d_v1.
MODEL_PATH: deployment checkpoint directory on node 0.

Hardware Checks#

Run these checks before starting Ray.

Foot pedal#

Use the vendor tool once to configure the PCsensor FootSwitch keys as a / b / c. Then on node 0:

ls -l /dev/input/by-id/*-event-kbd
sudo chmod 666 /dev/input/eventXX
export RLINF_KEYBOARD_DEVICE=/dev/input/eventXX

Note

Replace every eventXX with the actual eventNN resolved by the first command, for example event7. Export RLINF_KEYBOARD_DEVICE before ray start.

Cameras#

rs-enumerate-devices | grep -E "Name|Serial|USB Type"
ls /dev/v4l/by-id/
lsusb -t

Expected output should identify the RealSense serial, two Lumos devices, and USB-3 speed such as 5000M. 480M means the device fell back to USB 2.

GELLO leaders#

Identify the two FTDI paths by plugging one leader at a time:

ls /dev/serial/by-id/ | grep -i ftdi

Verify each leader streams smooth joint values:

cd /path/to/RLinf
export PYTHONPATH=$PWD:${PYTHONPATH:-}
python -m rlinf.envs.realworld.common.gello.gello_joint_expert \
    --port /dev/serial/by-id/usb-FTDI_..._<LEFT_ID>-if00-port0

The command continuously refreshes output, for example:

joints=[+0.012 -0.604 +0.031 -2.184 +0.019 +1.571 +0.781]  gripper=[0.035]

If values stop updating or jump by about 2π, run the calibration below.

GELLO calibration#

Calibrate each GELLO once, then verify it with align-sequential. Both leaders can be calibrated against the left arm on node 0.

cd /path/to/RLinf
export PYTHONPATH=$PWD:${PYTHONPATH:-}
export GELLO_PORT=/dev/serial/by-id/usb-FTDI_..._<ID>-if00-port0

python toolkits/realworld_check/test_gello.py calibrate
python toolkits/realworld_check/test_gello.py align-sequential

On success, align-sequential prints:

ALL JOINTS ALIGNED
  per-joint Δ (rad): ['+0.012', '-0.008', '+0.005', '+0.021', '-0.041', '+0.009', '-0.003']
  max |Δ| = 0.041 rad on J5 (stream gate threshold = 0.5 rad — well under)
You can now Ctrl-C and start collect_data.sh.

Run the same two commands for the second leader by changing GELLO_PORT.

Run It#

Start Ray#

Ray captures environment variables at ray start time. Export the rank and keyboard device before starting the cluster.

# node 0
cd /path/to/RLinf
source .venv/bin/activate
export PYTHONPATH=$PWD:${PYTHONPATH:-}
export RLINF_NODE_RANK=0
export RLINF_KEYBOARD_DEVICE=/dev/input/eventXX

ray stop --force
ray start --head --port=6379 --node-ip-address=<HEAD_IP>

# node 1
cd /path/to/RLinf
source .venv/bin/activate
export PYTHONPATH=$PWD:${PYTHONPATH:-}
export RLINF_NODE_RANK=1

ray stop --force
ray start --address=<HEAD_IP>:6379 --node-ip-address=<WORKER_IP>

On node 0, run ray status and confirm that both nodes are ALIVE.

Collect demonstrations#

Start collection on node 0 after align-sequential reports ALL JOINTS ALIGNED:

cd /path/to/RLinf
export PYTHONPATH=$PWD:${PYTHONPATH:-}
bash examples/embodiment/collect_data.sh \
    realworld_collect_data_gello_joint_dual_franka 2>&1 | tee logs/collect.log

In another node 0 terminal, monitor progress:

cd /path/to/RLinf
python toolkits/realworld_check/collect_monitor.py logs/collect.log

Foot-pedal controls:

a: start recording; press again while recording to abort and drop the current buffer.
b: increment segment_id for sub-task boundaries.
c: mark success, write the LeRobot shard, and finish the episode.

Set data_collection.resume: true and keep the same data_collection.save_dir to append new id_* shards to an existing dataset.

Backfill tcp_rot6d#

Collection writes joint-space data. Convert it before SFT:

cd /path/to/RLinf
export PYTHONPATH=$PWD:${PYTHONPATH:-}
export HF_LEROBOT_HOME=/path/to/lerobot_root
export DATA_REPO_ID=<repo_id>
export SFT_REPO_ID=$DATA_REPO_ID/tcp_rot6d_v1

python toolkits/dual_franka/backfill_tcp_rot6d.py \
    --src $HF_LEROBOT_HOME/$DATA_REPO_ID/joint_v1 \
    --dst $HF_LEROBOT_HOME/$SFT_REPO_ID

Run SFT#

Synchronize the converted dataset to the training node, then run SFT there:

export TRAINER_IP=<trainer_ip>
export HF_LEROBOT_HOME=/path/to/lerobot_root
export SFT_REPO_ID=<repo_id>/tcp_rot6d_v1

ssh $TRAINER_IP "mkdir -p $HF_LEROBOT_HOME/$SFT_REPO_ID"
rsync -av $HF_LEROBOT_HOME/$SFT_REPO_ID/ \
    $TRAINER_IP:$HF_LEROBOT_HOME/$SFT_REPO_ID/

On the training node:

cd /path/to/RLinf
source .venv/bin/activate
export PYTHONPATH=$PWD:${PYTHONPATH:-}
export HF_LEROBOT_HOME=/path/to/lerobot_root
export DUAL_FRANKA_DATA_ROOT=/path/to/lerobot_root
export PI05_BASE_CKPT=/path/to/pi05/torch
export SFT_REPO_ID=<repo_id>/tcp_rot6d_v1

python toolkits/lerobot/calculate_norm_stats.py \
    --config-name pi05_dualfranka_tcp_rot6d \
    --repo-id $SFT_REPO_ID

mkdir -p $PI05_BASE_CKPT/$SFT_REPO_ID
cp <openpi_assets_dirs>/pi05_dualfranka_tcp_rot6d/$SFT_REPO_ID/norm_stats.json \
   $PI05_BASE_CKPT/$SFT_REPO_ID/norm_stats.json

bash examples/sft/run_vla_sft.sh realworld_sft_openpi_dual_franka_tcp_rot6d

Update SFT_DATASET_REPO_ID, PI05_BASE_CKPT, logger settings, and cluster placement in examples/sft/config/realworld_sft_openpi_dual_franka_tcp_rot6d.yaml. Checkpoints are saved under <log_path>/checkpoints/global_step_<N>/actor/model_state_dict/full_weights.pt.

Evaluation and Deployment#

Prepare checkpoint files#

The deployment checkpoint directory on node 0 must contain:

<model_path>/
├── actor/model_state_dict/full_weights.pt
└── <repo_id>/tcp_rot6d_v1/norm_stats.json

Synchronize the SFT checkpoint and matching normalization stats back to node 0:

export TRAINER_IP=<trainer_ip>
export DEPLOY_CKPT=/path/to/deploy/global_step_<N>
export SFT_REPO_ID=<repo_id>/tcp_rot6d_v1

mkdir -p $DEPLOY_CKPT/actor/model_state_dict
mkdir -p $DEPLOY_CKPT/$SFT_REPO_ID

rsync -av \
    $TRAINER_IP:<train_log>/checkpoints/global_step_<N>/actor/model_state_dict/full_weights.pt \
    $DEPLOY_CKPT/actor/model_state_dict/full_weights.pt
rsync -av $TRAINER_IP:<train_log>/checkpoints/global_step_<N>/$SFT_REPO_ID/norm_stats.json \
    $DEPLOY_CKPT/$SFT_REPO_ID/norm_stats.json

Set rollout.model.model_path to $DEPLOY_CKPT and actor.model.openpi_data.repo_id to <repo_id>/tcp_rot6d_v1 in examples/embodiment/config/realworld_eval_dual_franka.yaml.

Launch deployment#

Reuse the Ray cluster from collection, or restart it with the same environment variables. Launch the policy through the real-world evaluation guide with realworld_eval_dual_franka.

Deployment pedal controls:

a: start policy execution from idle.
b: mark failure and reset.
c: mark success and reset.

After each reset, the wrapper waits for a again to allow scene reset before the next episode.

Troubleshooting#

Ray worker import failure: In the same shell that ran ray start, check which python and python -c "import franky, gello, gello_teleop". Worker logs are under /tmp/ray/session_latest/logs/worker-*.err.
Foot pedal permission denied: Re-run sudo chmod 666 /dev/input/eventXX and confirm RLINF_KEYBOARD_DEVICE points to the same device.
RealSense appears as USB 2: Replace the cable or port. lsusb -t should show 5000M instead of 480M.
GELLO stops streaming: Power-cycle the leader, replug the FTDI adapter, and verify it with python -m rlinf.envs.realworld.common.gello.gello_joint_expert --port ....
One arm does not respond during reset: On that controller node, run ping -c 100 <robot_ip>. If packets drop, fix the NIC/FCI connection or power-cycle the robot.
Deployment cannot locate ``norm_stats.json``: Check that the file is exactly at <model_path>/<actor.model.openpi_data.repo_id>/norm_stats.json.
Deployment remains idle: Confirm the pedal path and permission, then press a. The eval wrapper waits in idle between episodes by design.
